CSR Elite wheel and TH8 handbrake mod

[Spike125]

So, planning phase and part of building is finished, so I thought I will share a little, what happened until now.
I was planning to upgrade my wheel rim for a while now, so this is what I came up with.

I had a adapter machined from aluminium to fit on and over the original shaft.

20120929_162441 by theSpike125, on Flickr

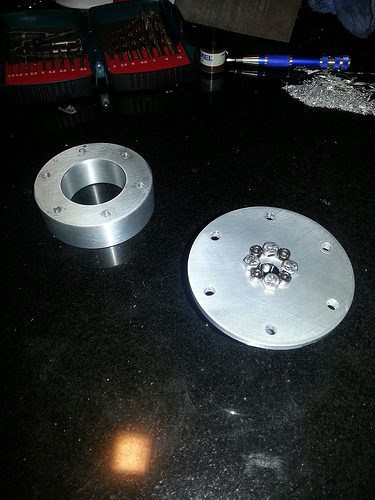

The sleeve fits over the shaft to support from tilt on the wheel.


20120929_162530 by theSpike125, on Flickr

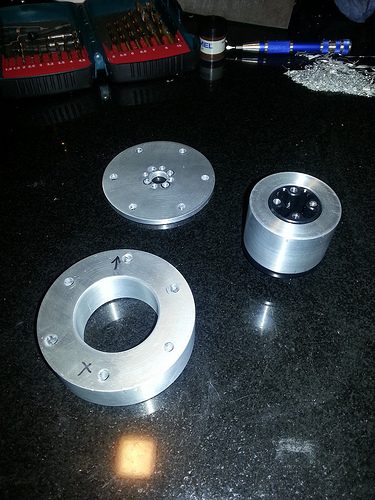

The plate is the support for the adpater to the wheel.


20120929_163224 by theSpike125, on Flickr

I drilled some holes in the adapter to reduce the weight a little.


20120929_165304 by theSpike125, on Flickr

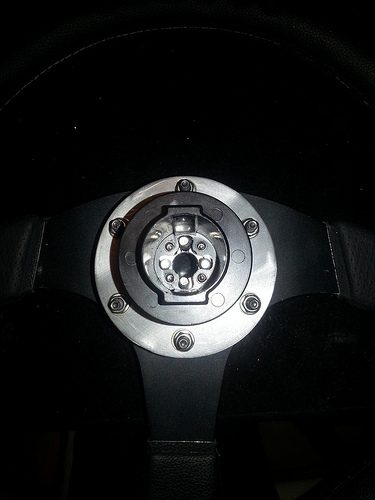

That's how the package looks fitted to the wheel. I didn't decide yet if I will fit some paddle shifter, but I left the bolts long so I still have some options.


20120929_170117 by theSpike125, on Flickr


20120929_170141 by theSpike125, on Flickr


20120929_170128 by theSpike125, on Flickr

That's how the new rim looks fitted to the wheel.


20120929_171854 by theSpike125, on Flickr

Even the BMW emblem fits


20120929_172246 by theSpike125, on Flickr

Part two are the wheel buttons.
I removed the PCB and and fitted it in the housing of an old router and routed the wiring out from the backside.
A few details are still missing, like the knob and decals, but here some more pictures.


20120928_204301 by theSpike125, on Flickr


20120929_185251 by theSpike125, on Flickr


20120929_190018 by theSpike125, on Flickr

That's it so far.
Project for the future is a holder for the button box, a hard wire mod for an hand brake and installing the vibration motors for FFB on the wheel rim, maybe also some buttons.

Updates will follow hopefully soon, hope you enjoy



[HoiHman]

Looking great spike125 👍

I see the only thing you kept from the 'original' rim is the BMW logo



[Raitziger]

Great! Too bad people have to go through so much trouble to get a decent rim for the elite.



[bumer]

I see the only thing you kept from the 'original' rim is the BMW logo

It's CSR Elite, not CSW, so no original BMW rim.

I agree, well done.



[Spike125]

Thanks for the feedback, but still a long way to go till I finished my plans.
The button box was a little rushed, but still works fine.
HoiHman, the emblem had to be transferred, I have now also a shifter knob from a E36 M3 on my TH8



[Troysloth]

When do you plan on selling these?



[Carson79]

Nice work Spike. What size is the momo wheel, and do you notice any difference in the turning circle? Again Impressive work



[Spike125]

I think made from tilton, as the dsd plates, this adapter could be sold.
But at the end you have to put so much more work in it, for wiring and so on.

@carson, the wheel is 340mm. Due to the increased diameter, the force you need to apply against the centering "spring" decreases. But due to the higher weight than the original wheel it has also has a more riged feel.
The turning circle remains same, as well as the turning speed of the wheel.



[CTstryk]

Wow! just wow!



[Spike125]

Thanks, I'm planning to do much more in the future, because there are still a few things missing e.g. hand brake, steering buttons and ffb motors.

Little Update, I got time to install the button box made from the original PCB


20121004_224220 by theSpike125, on Flickr

And the FFB motors


20121004_224230 by theSpike125, on Flickr

Everything still a little messy, but it works great.
I'm currently waiting for a steering wheel button board from DSD and then painting and final assembly can begin.



[Spike125]

A little update, had time to route the wiring through the steering shaft, which eliminates tangle and I decided to take of the middle piece, which makes the assembly somewhat lighter.


20121012_005844 by theSpike125, on Flickr


20121012_005837 by theSpike125, on Flickr

Now I just wait for my DSD wheel plate and then painting and final assembly can happen.



[Goldfinch31]

Would buy one right now if you make em is it for 70mm wheels?



[Spike125]

Yes, 70mm.
If you want to make your own, I can give you the dimensions I use on mine



[nickchong]

I would be keen to buy them as well. Goldfinch, how did you acquire your CSR elite wheel in Australia?



[Spike125]

So, finally got some time to continue working.
My next project on the rig is the handbrake.
I modified a TH8 with a new housing and a hydraulic shock, but have a look yourself

Still looks a little industrial, but the rough work is finish, now only paint and a leather boot.


IMG_1016 by theSpike125, on Flickr
This is the housing i fabricated


IMG_1020 by theSpike125, on Flickr
The housing is with hinges, to adjust the angle of the handbrake.


IMG_1021 by theSpike125, on Flickr
The interns of the TH8 with the shock attached


IMG_1022 by theSpike125, on Flickr


IMG_1023 by theSpike125, on Flickr
Fitted in the housing


IMG_1024 by theSpike125, on Flickr


IMG_1025 by theSpike125, on Flickr

And with the lid.

Will update again after painting, detailing and fitting to the rig.

Hope you enjoy.



[mrbasher]

That's damn awesome spike, seriously. Nice to finally see what it was you've been working on.

I'm going to get you that new SFA1 firmware this morning. Just gotta grab my coffee first



[mrbasher]

Done. You've got mail



[Spike125]

Thx, got it
I'll do some advertisement once we got everything working



[mrbasher]

HA! I dunno if I want that yet Let's see how it works out first.



[soups]

I just finished making a hand brake from a extra g27 pedal I had. Works awesome.will post pics soon.



[Spike125]

Small update, the TH8 is now working as a handbrake in FM4 and Horizon, thanks to the awesome support of MrBasher
Will post some stuff once the final assembly is finished.



[Spike125]

So, the Handbrake is mounted and looking good.
The booth is still missing and the handle not yet finished, but the rig is ready to race


IMG_1039 by theSpike125, on Flickr


IMG_1043 by theSpike125, on Flickr



[Cheeba]

That looks awesome spike125 👍. Placement looks spot on.



[Spike125]

Thx man
Muscle memory works already great and the rig still has some room for a H shifter.
