Gran Turismo 7 Telemetry UDP support

miniraziel · Mar 15, 2022

Does any one know if there will be Telemetry UDP support(as per codemasters games) to connect external display/leds? This would give a great boost to immersion and simulation to the game.

Gearhead_dad · May 30, 2022

I’m interested in this also. Anyone start a beta for iOS or android?

pedrocor · May 30, 2022

Don't hold your breath...

The physics coding of Gran Turismo doesn't have real telemetry where these apps get the data.

Gearhead_dad · May 30, 2022

All you need is a usb plug in or Bluetooth connection and a program to convert all the data display from the monitor to a tablet it would make the game more fun especially for streamers. Anyone who makes this I would like to beta test

Skinny McLean · May 30, 2022

pedrocor
The physics coding of Gran Turismo doesn't have real telemetry where these apps get the data.

I wouldn't feel so sure about that. Here's what looks like a C/C++ printf() formatting string I found in GT Sport:

Code:

Simulator Interface Packet ver 0.0
{
    \"engineRPS\":%f,
    \"maxEngineRPS\":%f,
    \"fuelPressure\":%f,
    \"fuelLiters\":%f,
    \"fuelCapacityLiters\":%f,
    \"engineWaterTemp\":%f,
    \"engineOilTemp\":%f,
    \"engineOilPressure\":%f,
    \"carSpeed\":%f,
    \"numberOfLaps\":%ld,
    \"completedLaps\":%ld,
    \"lapTimeBest\":%f,
    \"lapTimePrevious\":%f,
    \"lapTimeCurrent\":%f,
    \"position\":%ld,
    \"numCars\":%ld,
    \"gear\":%ld,
    \"tireTemp\":[ [%f, %f, %f], [%f, %f, %f], [%f, %f, %f], [%f, %f, %f]],
    \"numPenalties\":%ld,
    \"carCGLoc\":[%f, %f, %f],
    \"carOri\":[%f, %f, %f],
    \"localAcceleration\":[%f, %f, %f],
    \"bodyHeight\":%f
}

Apparently exporting telemetry from replays was also possible:

Code:

// List of Gran Turismo Sport MoTeC i2 telemetry channels
// Format: "long name", "short name", "[unit]"

"Vehicle Speed", "VehSpd", "[km/h]"
"G Force Long", "G Long", "[G]"
"G Force Lat", "G Lat", "[G]"
"G Force Vert", "G Vert", "[G]"
"Throttle Pos", "TPD", "[angle%]"
"Brake Press", "Brake P", "[bar]"
"Gear", "Gear", "[]"
"Engine RPM", "RPM", "[rpm]"
"Wheel Speed FL", "WSpd FL", "[km/h]"
"Wheel Speed FR", "WSpd FR", "[km/h]"
"Wheel Speed RL", "WSpd RL", "[km/h]"
"Wheel Speed RR", "WSpd RR", "[km/h]"
"Susp Pos FL", "SPosHFL", "[mm]"
"Susp Pos FR", "SPosHFR", "[mm]"
"Susp Pos RL", "SPosHRL", "[mm]"
"Susp Pos RR", "SPosHRR", "[mm]"
"Wheel Load FL", "WH L FL", "[N]"
"Wheel Load FR", "WH L FR", "[N]"
"Wheel Load RL", "WH L RL", "[N]"
"Wheel Load RR", "WH L RR", "[N]"
"Contact Press FL", "CT P FL", "[kPa]"
"Contact Press FR", "CT P FR", "[kPa]"
"Contact Press RL", "CT P RL", "[kPa]"
"Contact Press RR", "CT P RR", "[kPa]"
"Tire Tread Temp FL", "T T FL", "[C]"
"Tire Tread Temp FR", "T T FR", "[C]"
"Tire Tread Temp RL", "T T RL", "[C]"
"Tire Tread Temp RR", "T T RR", "[C]"
"Tire Contact Temp FL", "CT T FL", "[C]"
"Tire Contact Temp FR", "CT T FR", "[C]"
"Tire Contact Temp RL", "CT T RL", "[C]"
"Tire Contact Temp RR", "CT T RR", "[C]"
"Steered Angle", "StAngBK", "[deg]"
"Yaw", "Yaw", "[deg/s]"
"Pitch", "Pitch", "[deg/s]"
"Roll", "Roll", "[deg/s]"
"GPS Longitude", "GPSLong", "[deg]"
"GPS Latitude", "GPSLat", "[deg]"
"GPS Altitude", "GPS Alt", "[m]"
"GPS Heading", "GPS Head", "[deg]"

But of course that's not something they would allow us plebs to use. PD logic™.

Gearhead_dad · May 30, 2022

If someone can make an app for android or iOS that’s will be a game changer

daan · May 30, 2022

pedrocor
Don't hold your breath...

The physics coding of Gran Turismo doesn't have real telemetry where these apps get the data.

GT6 had Motec support.

Gran Turismo 6 Compatible with MoTeC i2 Professional Data Analysis Software

The high-end data analysis tool used by professional motorsports teams is now compatible with GT6.

www.gtplanet.net

Wisy · May 30, 2022

daan
GT6 had Motec support.

Gran Turismo 6 Compatible with MoTeC i2 Professional Data Analysis Software

The high-end data analysis tool used by professional motorsports teams is now compatible with GT6.

www.gtplanet.net

I was thinking the same. That was cool

Gearhead_dad · May 30, 2022

Anyone on this forum good with IT work? Maybe develop a app and seek out testers?

Skinny McLean · May 30, 2022

Hearhead_dad
If someone can make an app for android or iOS that’s will be a game changer

That wont happen until PD give players access to the telemetry.

Gearhead_dad · May 30, 2022

Or have PD design the app?

poumpoum · May 30, 2022

Only a big company like Fanatec / Thrustmater / Logitech could ask PD to give them access to this telemetry. It could bring us display / leds but also motion rigs !!!

I hope it will happen someday but even the triple screen option doesn't seem to be on PD's plan this time so....

rAtey · May 30, 2022

poumpoum
Only a big company like Fanatec / Thrustmater / Logitech could ask PD to give them access to this telemetry. It could bring us display / leds but also motion rigs !!!

I hope it will happen someday but even the triple screen option doesn't seem to be on PD's plan this time so....

Nothing to do with PD. Playstation doesn't support it. Same for ultrawide. I'd love to play racing games on my ps5 with an ultrawide but alas we can't.

Gearhead_dad · May 30, 2022

All they need is an affordable one time purchase app and it can give you shift display button box etc

rAtey · May 30, 2022

Hearhead_dad
All they need is an affordable one time purchase app and it can give you shift display button box etc

Oh man, I don't want to be rude but you must be new here.

Gearhead_dad · May 30, 2022

Actually I Amon the forums but I’m not new when it comes to sim racing I know you can make button boxes with a number key pad and **** like that. But a display for rpm shift light speed similar to an actual car would be ideal and get more in depth with the game. Just my honest opinion

rAtey · May 30, 2022

Hearhead_dad
Actually I Amon the forums but I’m not new when it comes to sim racing I know you can make button boxes with a number key pad and **** like that. But a display for rpm shift light speed similar to an actual car would be ideal and get more in depth with the game. Just my honest opinion

I fully agree man, but PD will never add this, or allow some other dev to snoop in their source code.

poumpoum · Jun 1, 2022

rAtey
Nothing to do with PD. Playstation doesn't support it. Same for ultrawide. I'd love to play racing games on my ps5 with an ultrawide but alas we can't.

PS2 and PS3 didn't support triple screen officially but PD managed to make it work. On the side screens (consoles 2 and 3) it's a simple client that listens the server (main console 1) on the local network.

So yes, if they want they could add triple screen

miniraziel · Jul 29, 2022

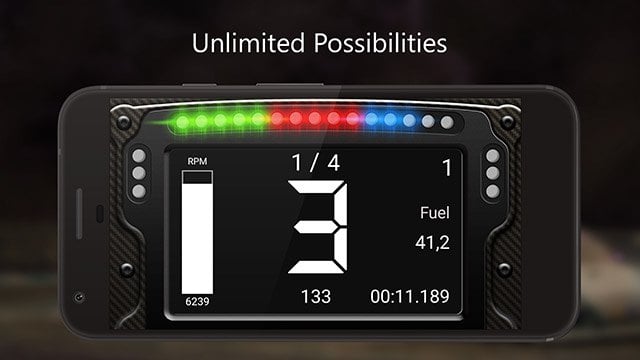

Sim Dashboard app by Strider has been updated with the support for GT7!!!!

SIM Dashboard Android App

SIM Dashboard is a highly customizable Second Screen App for your favourite Sim Racing Games. Select from more than 200 customizable widgets and create your own personal display

www.stryder-it.de

Finally!!
