My gaming / movie entertainment center build. 100% complete. Lots of pics.

[CAMAROBOY69]

First I want to thank @Pako and @TB for posting their builds and for the helpful advice. Their setups gave me quite a bit of innovative ideas.

@CAMAROBOY69 cant wait to see the build and progress pics.

Here you go.

This has been an overwhelming project I have worked on for the last month. Been trying to figure out for years what to do with this very limited space. The setup needed to seat 3 people comfortably for movies and gaming. The main goal was to get both of my computers, my PS3, 360, and receiver ALL into an entertainment center and ALL hooked to my tv and all hooked to the surround sound. I also needed an area for my router and modem. On top of that, cooling fans would need to be installed to keep the heat down. I also wanted ambient backlighting. All of the products were purchased online. I could not find anything I needed at all locally. This is the first entertainment center I have ever purchased in my life.

So this overload of pictures will range from movies to games to installation pics, products I purchased, and customization. This entire entertainment center had to be assembled from top to bottom.
Also pictured below is a twin screen feature my Sony Bravia has that allows the PS3 and 360 to be on at the same time. This used to work very well during GT5 B spec mode. To showcase this feature I used Forza 4 and GT6. The tv allows the input to be scaled any size but I left it 50%/50% for the example.

Final Pics



[CAMAROBOY69]

Pics and info continued...



Ottoman with casters
The ottoman was very difficult to find and fit perfect for the center person! Overall size was 18"x18"x18". Perfect footrest or extra seat. It is very comfortable and also has storage. In fact it even holds a 30 pack of beer. I removed the wooden legs and added casters so it is easier to move around.




Cooling fans (x4)
The cooling fans are 80mm and are hooked to the tv via USB. When I turn on the TV, (4) USB powered fans turn on at the same time to help cool down the PS3, 360, and the receiver. They work very well. Each fan required a 3" hole to be cut for the fan along with a 1-1/2" hole for wire access, along with smaller holes for each fan bolt. Lots of saw dust, lots of vacuuming, lots of work. An overload of proper measurement for the perfect install.
1 fan behind 360 and power brick.
1 fan behind PS3.
2 fans behind receiever.






Dust filtration system
I added in a filtration system to help collect dust. The fans are held on with long bolts and nuts. So not only do the bolts hold the fans, they also easily hold the foam filters. Works very well.
The rope lighting involved careful routing which required quite a lot of small pre drill holes, screws, and brackets. I also wired an on off switch to the rope wire.




Custom glass table
Even the glass table you see in the pictures is all custom made. It has custom cut glass, custom cut legs, and I had to put it all together.




Rope lights
These worked perfect but did involve quite a bit of work. Had to figure out my linear feet then drill all the holes for the brackets. The nice part is this is square tubing so it sits flush to the wood. Purchased an on off switch for the lights.

GT6 and Forza 4 on the Sony Bravia at the same time via "twin screen" setting.

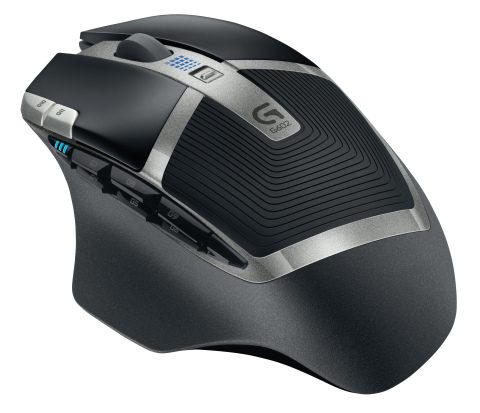

Wireless mouse Logitech G602 and keyboard
I have a wireless keyboard and mouse to run the computers. Feels wonderful sitting on the couch playing PC games on the 40" tv through the surround sound.


Couch (pics in first post)
The couch is suede microfiber with 2 recliners, 2 back massagers, 2 center lights, center storage, fold down cup holders, and a couch cooler in the middle that pulls out from the bottom.

Entertainment Center (pics in first post)
Hillsdale Grand Bay Small Entertainment Wall Unit. Luckily I found it on sale. Superb build quality. Installation required no tools at all. Just mainly metal slide clips. Just amazing quality. Very impressed with Hillsdale. In fact Fed Ex broke one of the cabinets and Hillsdale sent me another one within a week.
