Damn planes, am I right, always looking so similar. It's all good man.
The General Airplane Thread
- Thread starter Crash
- 2,744 comments
- 193,390 views
Damn planes, am I right, always looking so similar. It's all good man.
- 4,265
- Anchorage, AK
- nomeite
Last edited:
- 15,171
- Grandville Mi
- Gotbeefboy564
- Got beef boy564
Went to the St. John's concourse Sunday. They had a fly over during the awards ceremony and it was a b25. They said it was one that went to Japan but I don't remember if that was the actual story or just a reminder that it was the plane that bombed Japan.
Took a few pics full zoom from my iPhone.
Took a few pics full zoom from my iPhone.
- 3,174
- Pinckney, MI
- NISMO_S13
- If I had the money
Has anyone ever seen the F117 called Toxic Death? It was one of the prototypes and when it was retired it was donated to Wright Patterson for the Air Force Museum, but no F117 had ever been displayed in a museum before. So they media blasted the reflective paint off it before it left. And because media blasting can be pretty hateful, the crew had to be covered head to toe to protect themselves, hence the name Toxic Death. After they were done, I guess they were allowed to have a little bit of fun with it. They also took out all of the sensitive and top secret stuff, but the transit look is awesome. As far as I've seen, this is the only photo of it.
This is Toxic Death today.
This is Toxic Death today.
Dan
Premium
- 15,396
- United States
Wow. I never knew about this. Thank you for sharing!
- 6,425
- KCCO
Hmm? Might need to see a picture.
- 5,076
- Panama City, FL
I just did an image search for "Boeing 747" and i saw no black circles.
That said, the plane shown was actually the 747 prototype, probably quite different electronics from the ones around today. Coloring the nose over the radar meant more expensive material, which would have nothing to do with testing and proving the airplane's performance and capability. Can't use most paints over the antenna, so you get a "save money" look like the black bumpers of a cheap car.
That said, the plane shown was actually the 747 prototype, probably quite different electronics from the ones around today. Coloring the nose over the radar meant more expensive material, which would have nothing to do with testing and proving the airplane's performance and capability. Can't use most paints over the antenna, so you get a "save money" look like the black bumpers of a cheap car.
- 6,425
- KCCO
Ahh.... now that I know what you're talking about, it makes a bit more sense. It's primarily found on the 100 series 747s, not so much the newest generations..
I'd have to assume that the major reason for this was for the radome, generally a composite material, which houses the weather radar/avoidance systems. Even in the late 60's, early 70's, weather radar was minimal but available. The black paint may or may not contain magnetic properties to help attract and correctly funnel the signals back to the dish.
This is the inside of the radome. The device tilts left to right, up and down to pick up the signals. In flight, and when the weather scanner is turned on, the pilot can adjust the tilt and pan to adjust the the angle of climb or decent.
This is the inside of the radome, unsure of the type however:
Mostly comprised of carbon fiber and what appears to be a honeycomb type of material.
This is N664US. It's final pax revenue flight was Detroit-Seoul (Korean air in the back). While flying on it's last few hours it ran into a hail storm, this is the damage hail can do at extreme speed. The damage to the radome as well as the weather radar was going to be more costly than profitable for the next flight, so the return leg was to the boneyard.
I'd have to assume that the major reason for this was for the radome, generally a composite material, which houses the weather radar/avoidance systems. Even in the late 60's, early 70's, weather radar was minimal but available. The black paint may or may not contain magnetic properties to help attract and correctly funnel the signals back to the dish.
This is the inside of the radome. The device tilts left to right, up and down to pick up the signals. In flight, and when the weather scanner is turned on, the pilot can adjust the tilt and pan to adjust the the angle of climb or decent.
This is the inside of the radome, unsure of the type however:
Mostly comprised of carbon fiber and what appears to be a honeycomb type of material.
This is N664US. It's final pax revenue flight was Detroit-Seoul (Korean air in the back). While flying on it's last few hours it ran into a hail storm, this is the damage hail can do at extreme speed. The damage to the radome as well as the weather radar was going to be more costly than profitable for the next flight, so the return leg was to the boneyard.
Dan
Premium
- 15,396
- United States
Ahh.... now that I know what you're talking about, it makes a bit more sense. It's primarily found on the 100 series 747s, not so much the newest generations..
I'd have to assume that the major reason for this was for the radome, generally a composite material, which houses the weather radar/avoidance systems. Even in the late 60's, early 70's, weather radar was minimal but available. The black paint may or may not contain magnetic properties to help attract and correctly funnel the signals back to the dish.
This is the inside of the radome. The device tilts left to right, up and down to pick up the signals. In flight, and when the weather scanner is turned on, the pilot can adjust the tilt and pan to adjust the the angle of climb or decent.
This is the inside of the radome, unsure of the type however:
Mostly comprised of carbon fiber and what appears to be a honeycomb type of material.
This is N664US. It's final pax revenue flight was Detroit-Seoul (Korean air in the back). While flying on it's last few hours it ran into a hail storm, this is the damage hail can do at extreme speed. The damage to the radome as well as the weather radar was going to be more costly than profitable for the next flight, so the return leg was to the boneyard.
Thanks for your explanation. I figured the black paint would have some effect on the radar's signal.
- 2,692
- Knoxville, Tennessee
Radomes are almost always made of fiberglass honeycomb, as carbon fiber absorbs radar energy. The radome also has to be extensively tested with the radar set that it will be protecting as to not create interference with the signal. The black paint looking stuff is dielectric primer-like coating, used to reduce static electricity on the surface of the radome. Normally it is covered with paint though. Paint thickness also can affect radar performance, along with water in the radome itself. The thin lines you see on the radome are metal electrostatic strips, used to send static electricity that builds up on the radome to the rest of the airframe to be discharged. The radar is programmed to ignore the reflections from these strips as to not show erroneous data to the flight crew.
- 9,554
- Vermont
- catamount39
- 3,277
- Whitehaven Cumbria Englan
- johnwells69
Planes at The Nostalgia Festival Croft Race Track.
All the planes were flown in to, be put on display. The Twister Aerobatic Team put some great displays.
There was also Bucker Bestmann, which I unfortunately didn't photo.
De Havilland Chipmunk
Twister Aerobatic Team
Stunt Biplane
Bucker Bestmann
All the planes were flown in to, be put on display. The Twister Aerobatic Team put some great displays.
There was also Bucker Bestmann, which I unfortunately didn't photo.
De Havilland Chipmunk
Twister Aerobatic Team
Stunt Biplane
Bucker Bestmann
Last edited:
- 15,171
- Grandville Mi
- Gotbeefboy564
- Got beef boy564
I've always seen this parked at the airport but today I caught the Fed Ex plane landing at Grand Rapids Airport as I was on the highway when he crossed
- 4,763
- Houston, TX
Been really interested in the MiG-25/31 recently. Anyone have any interesting stories or trivia on them?
- 10,836
- Belgium
- bramturismo
For many years I've personally found the Cessna 208 to be one of the most beautiful aircraft ever made:
- 22,551
- Arizona
- HamiltonMP427
For many years I've personally found the Cessna 208 to be one of the most beautiful aircraft ever made:
I too am found of the simplicity in the NACA 0012 airfoil
Been really interested in the MiG-25/31 recently. Anyone have any interesting stories or trivia on them?
So I hear you like people who spend hours upon hours hand welding Soviet Fighters together...
- 6,425
- KCCO
Foxbat looks pretty cool (not too sure about the caravan being all that good in looks though).

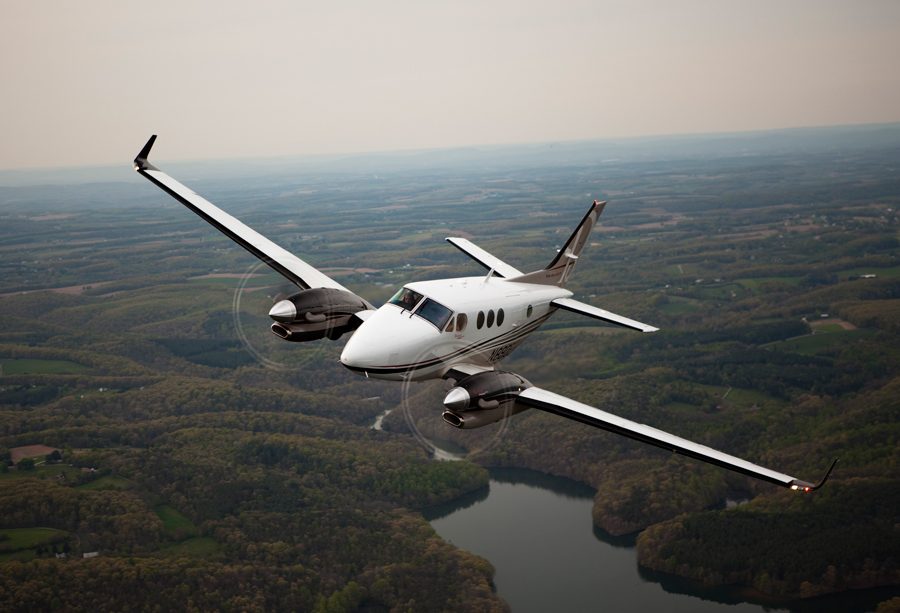

The Beechcraft C90Gtx though.....
And for vintage stuff, the Fw190, more so the Dora series, is my favorite warbird.
The Beechcraft C90Gtx though.....
And for vintage stuff, the Fw190, more so the Dora series, is my favorite warbird.
- 5,076
- Panama City, FL
Fw-190 FTW!!!!! I had a model of one of those back in middle school that my dad bought me to put next to the Me-109 I already had. The 109 completely lost it's cool factor after that for me!
My understanding is that the Mig-25 was built to intercept the XB-70. No other purpose, really. It had steel in its construction and was HEAVY!. Capable of over Mach 3, but would need its engines replaced after doing that speed. It was a scary airplane when it was still unknown. Pictures showed that huge wing, which was thought to give extreme maneuverability. When the guy defected with one, we saw that the huge wing was needed just to carry the thing into the air.
Oops. Got a like while I was editing. he liked the FW, not necessarily the MIG story.
My understanding is that the Mig-25 was built to intercept the XB-70. No other purpose, really. It had steel in its construction and was HEAVY!. Capable of over Mach 3, but would need its engines replaced after doing that speed. It was a scary airplane when it was still unknown. Pictures showed that huge wing, which was thought to give extreme maneuverability. When the guy defected with one, we saw that the huge wing was needed just to carry the thing into the air.
Oops. Got a like while I was editing. he liked the FW, not necessarily the MIG story.
Last edited:
Dan
Premium
- 15,396
- United States
Could someone help identify the plane @Johnny1996 took a photo of? I couldn't tell, but someone in here might.
https://www.gtplanet.net/forum/profile-posts/360147/
https://www.gtplanet.net/forum/profile-posts/360147/
- 22,551
- Arizona
- HamiltonMP427
- 6,425
- KCCO
Location, time, and where it was heading would be nice. What the local airports are around him too.
I'd go along the thought of Beechcraft as well. Not too sure what else...
I'd go along the thought of Beechcraft as well. Not too sure what else...
Carlos
Premium
- 6,453
- Netherlands
I don't think the second part was answered, but that's just there against reflection from the sun into the pilot's eye. Some noses are still in a different color like American Airlines. Probably because of its chrome like color.
Many military planes still have complete black noses, like the KC/RC-135. The E-3A still has anti sun reflection paint.
Very! A defecting Russian pilot landed his Mig-25 in Japan.
https://en.wikipedia.org/wiki/Viktor_Belenko
http://www.bbc.com/future/story/20160905-the-pilot-who-stole-a-secret-soviet-fighter-jet
Sooo North Korea held its first air show, and one pilot kinda screwed up.. (video should start at 9:07)
- 22,551
- Arizona
- HamiltonMP427
And planes not even of there nations origin, even better
👍@Heldenzeit I forgot to give this to you when you asked for more info in my original post, sorry friend. http://www.wvi.com/~sr71webmaster/mig25.html
@Carlos it wouldn't be a N. Korean airshow (even if it's the first) unless someone nearly binned a plane, especially a Chinese made mig-21
